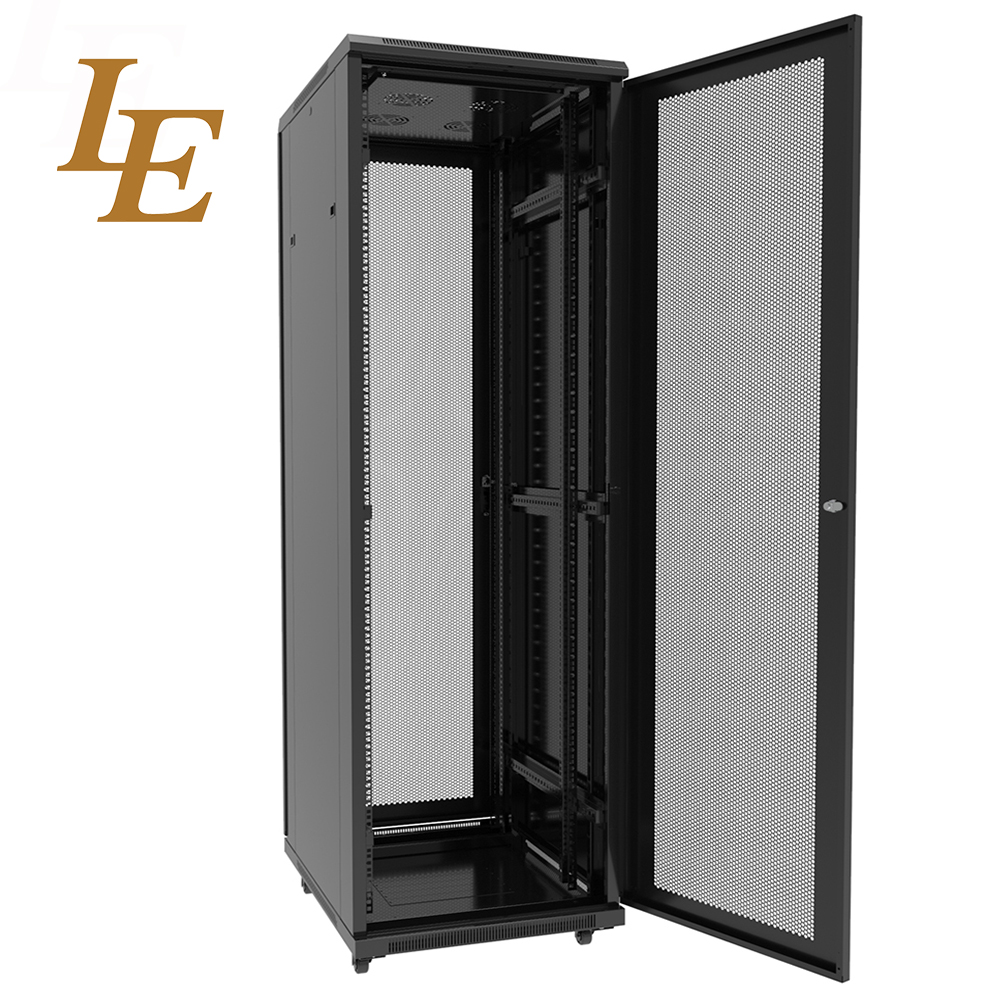

19 Inch Standard Network Cabinet 42u Floor Standing Server Rack For Data Center
NC
Quick Overview:
Arc shaped vented front door with hexagonal holes, can turn over 180 turning degree;
vented rear door door with hexagonal holes;
Removable side panels with latch,easy to install, optional lock;
Adjustable cable entry on the top and bottom;
Welded steel frame for front and back part, flat packing is available,easy to transfer;
Optional plinth to fix cabinet on floor;under base cable entry;
Unassembled packing,about 2/5 of original volume,save container space;
- Specification
- Specification
Main Structure(800 mm width)
Main Structure(600 mm width)
| Standard | ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI Standard |
| Material | SPCC quality cold rolled steel |
| Loading Capacity | Static loading: 800kg（on the adjustable feet） |
| Degree of protection | IP20 |
| Surface finish | Degreasing,Pickling,Phosphating,Powder Coated |
| Product specification | 18U-47U |
| Width | 600mm,800mm |
| Depth | 600mm,800mm,900mm,1000mm,1200mm |
| Color | Ral9004; Ral9005; Ral7035 |
