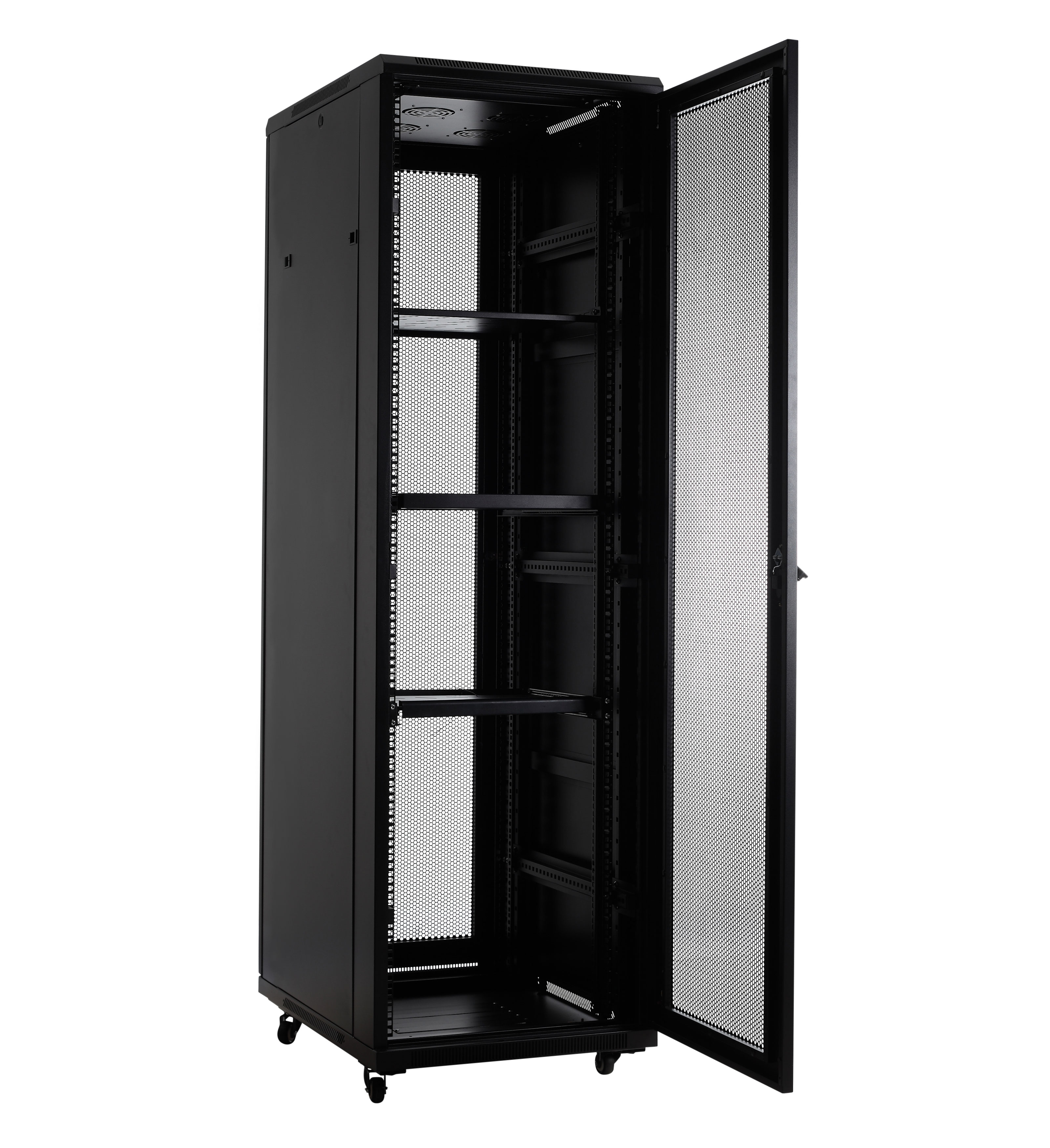

Cooling Data Center Floor Mount Server Rack Static Loading 800kg Width 600mm
ND
Quick Overview:
Vented front and rear door with excellent ventilation rate above 70%;
Removable side panels with lock optional;
Adjustable cable entry on the top and bottom cover;
Welded steel frame for front and back part, flat packing is available;
S-shaped mounting profile, free to move forward and back;
Various optional accessories for common using;
- Specification
- Specification
Main Structure(800 mm width)
Main Structure(600 mm width)
| Standard | ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI Standard |
| Material | SPCC quality cold rolled steel |
| Loading Capacity | Static loading: 800kg（on the adjustable feet） |
| Degree of protection | IP20 |
| Surface finish | Degreasing,Pickling,Phosphating,Powder Coated |
| Capacity | 18U-47U |
| Width | 600mm,800mm |
| Depth | 600mm,800mm,900mm,1000mm,1200mm |
| Color | Ral9004; Ral9005; Ral7035 |
