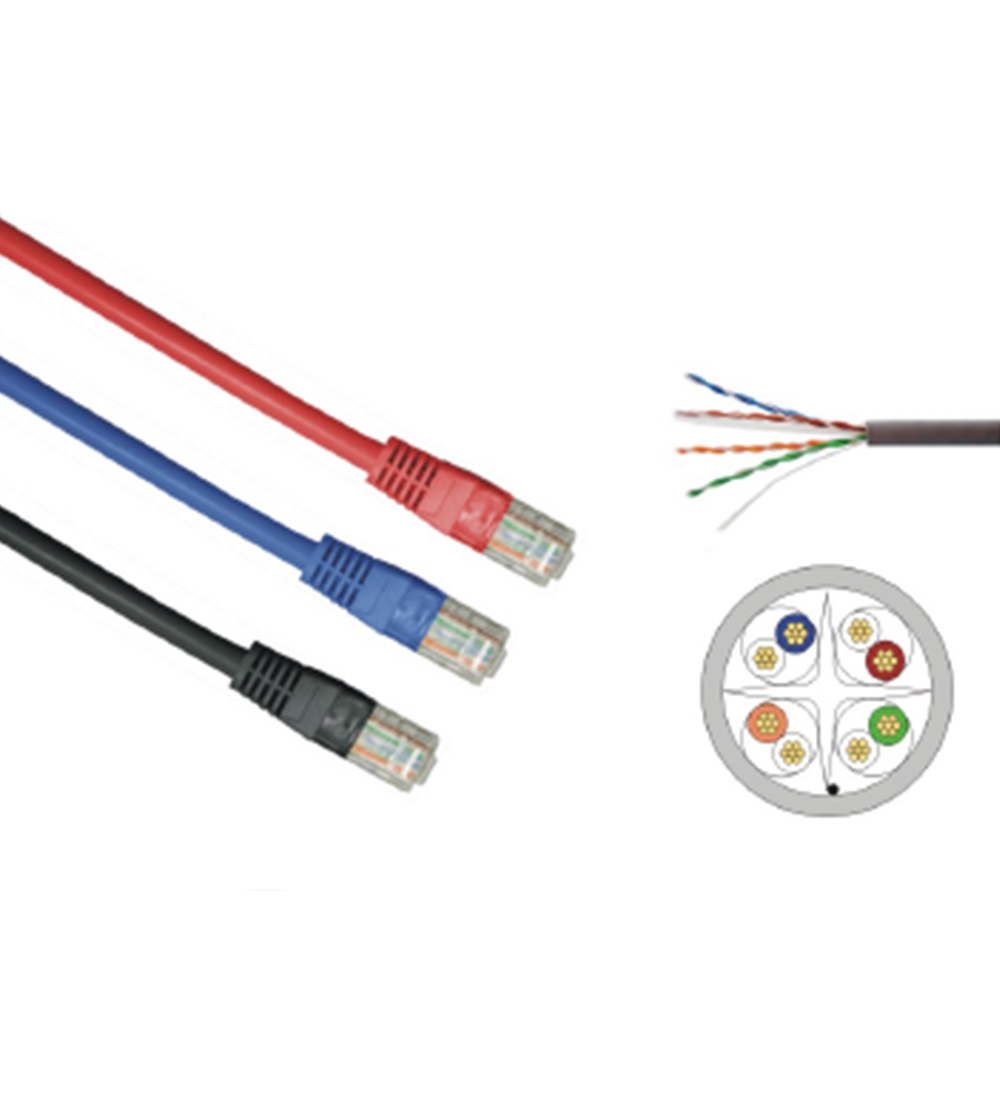

U/UTP unshielded twisted 4 pairs CAT6 Patch Cable

U/UTP6PVC

Quick Overview:

Specifications

rj45 110 ethernet cat5e cat6 cat6a cat7 sftp patch cord

Accept OEM or ODM

High quality competitive price

Pass fluke test

CE

1. Description

moulded plug with popular deisgn

2. Application

CAT5E,CAT6, CAT6A/UTP

AWG28/AWG27/AWG26/AWG24/AWG23

Stranded or Solid

3. Connection

1:1 (568A/568A, 568B/568B) or Corssover(568A/568B)

2*RJ45 Male (w/3u",6u", 15u", 30u", 50u" gold plated)

4. Length

0~50 Meter

5. Color

Any color are available.

6. Jacekt

PVC, PE or LSZH all available.

7. Package

PE Bag/ Clamshell(Blister) /Polybag+Headcards/or OEM as required

8.Industrial Standards

YD/T1019-2001(America) ANSI/TIA/EIA-568-B,(Internation) ISO/IEC 11801/71156

Send Inquiry
  • Specification

Patch Cord Cable Performance Specification Chart
ParameterCat5 Patch Cables
and Class D
with additional
requirements TSB95
and FDAM 2

Cat5e Patch

Cables
('568-A-5)

Cat6 Patch Cables
Class E
(Performance at
250 MHz shown
in parentheses)

Proposed
Cat7 Patch

Cables Class F
(Performance at
600 MHz shown
in parentheses)

Specified frequency

range

1-100 MHz1-100 MHz1-250 MHz1-600 MHz
Attenuation24 dB24 dB21.7 dB
(36 dB)
20.8 dB
(54.1 dB)
NEXT27.1 dB30.1 dB39.9 dB
(33.1 dB)
62.1 dB
(51 dB)
Power-sum NEXTN/A*27.1 dB37.1 dB
(30.2 dB)
59.1 dB
(48 dB)
ACR3.1 dB6.1 dB18.2 dB
(-2.9 dB)
41.3 dB
(-3.1 dB)**
Power-sum ACRN/A3.1 dB15.4 dB
(-5.8 dB)
38.3 dB
(-6.1 dB)**
ELFEXT17 dB
(new requirement)
17.4 dB23.2 dB
(15.3 dB)
ffs***
Power-sum ELFEXT14.4 dB
(new requirement)
14.4 dB20.2 dB
(12.3 dB)
ffs***
Return loss8 dB*
(new requirement)
10 dB12 dB
(8 dB)
14.1 dB
(8.7 dB)
Propagation delay548 nsec548 nsec548 nsec
(546 nsec)
504 nsec
(501 nsec)
Delay skew50 nsec50 nsec50 nsec20 nsec
