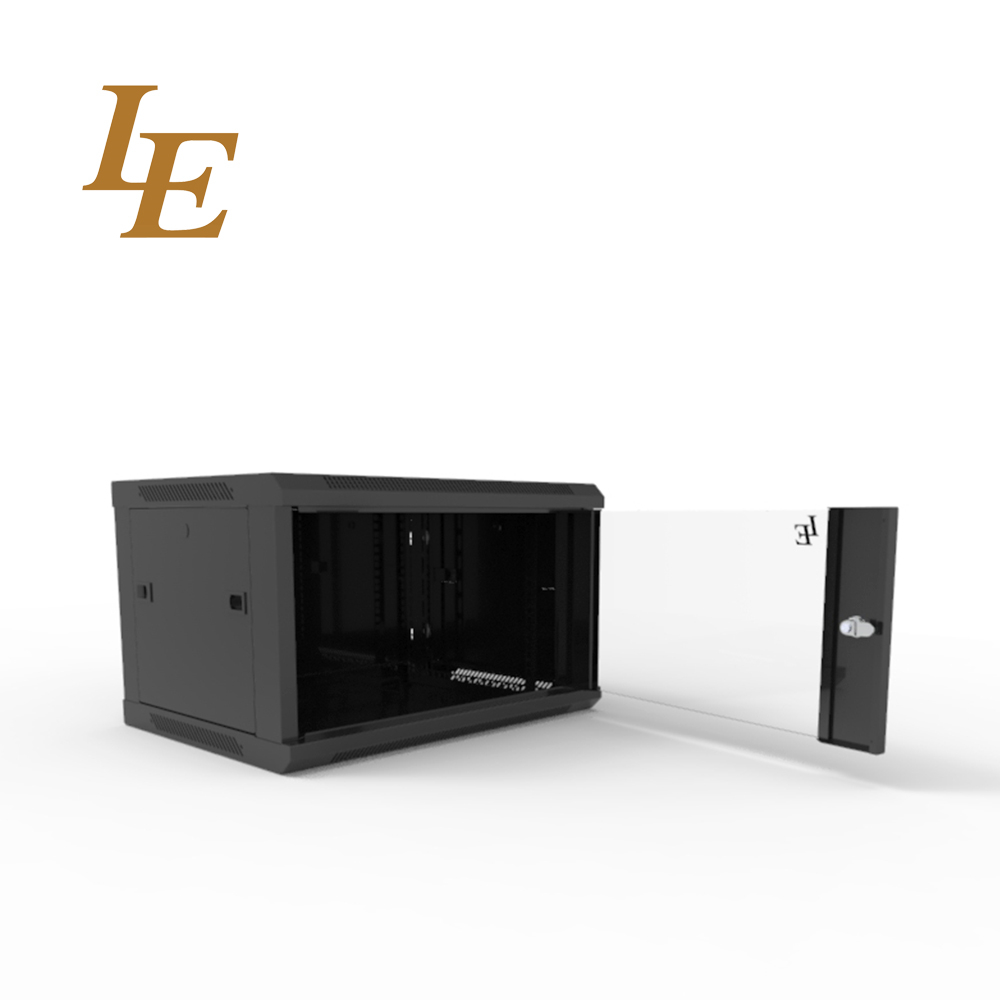

Home Office Computer Server Rack Data Center Wall Mounted Rack For Network
WS3
Quick Overview:
Steel frame with assistant profile unassembled structure;
Single section,compatible with 19" standard equipments;
5mm tempered glass front door with over 180 turning degree;
Removable side panel,easy to install and lock optional;
Cable entry on the top and bottom;
L-shaped mounting profile,easy to adjustable on the mounting rail;
Fan cutout on the top,easy to install fan;
Back panel with four mounting holes,easy to fix on the wall;
Various accessories for option;
Flat packing,save the container space,easy to transport;
- Specification
- Specification
- Specification
| Standard | Comply with ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI Standard; |
| Material | SPCC quality cold rolled steel |
| Loading Capacity | Static loading: 50kg |
| Degree of protection | IP20 |
| Surface finish | Degreasing,Pickling,Phosphating,Powder Coated |
| Product specification | 4U-18U |
| Width | 600mm |
| Depth | 450mm,600mm |
| Color | Ral9004; Ral9005; Ral7035 |
| Standard | Comply with ANS/EIA RS-310-D,IEC297-2,DIN41491,PART1,DIN41491,PART7,ETSI Standard; |
| Material | SPCC quality cold rolled steel |
| Loading Capacity | Static loading: 50kg |
| Degree of protection | IP20 |
| Surface finish | Degreasing,Pickling,Phosphating,Powder Coated |
| Product specification | 4U-18U |
| Width | 600mm |
| Depth | 450mm,600mm |
| Color | Ral9004; Ral9005; Ral7035 |
